How do cantilever stairs work?

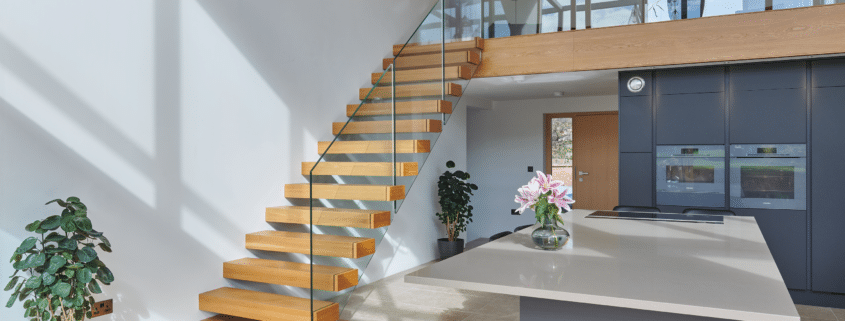

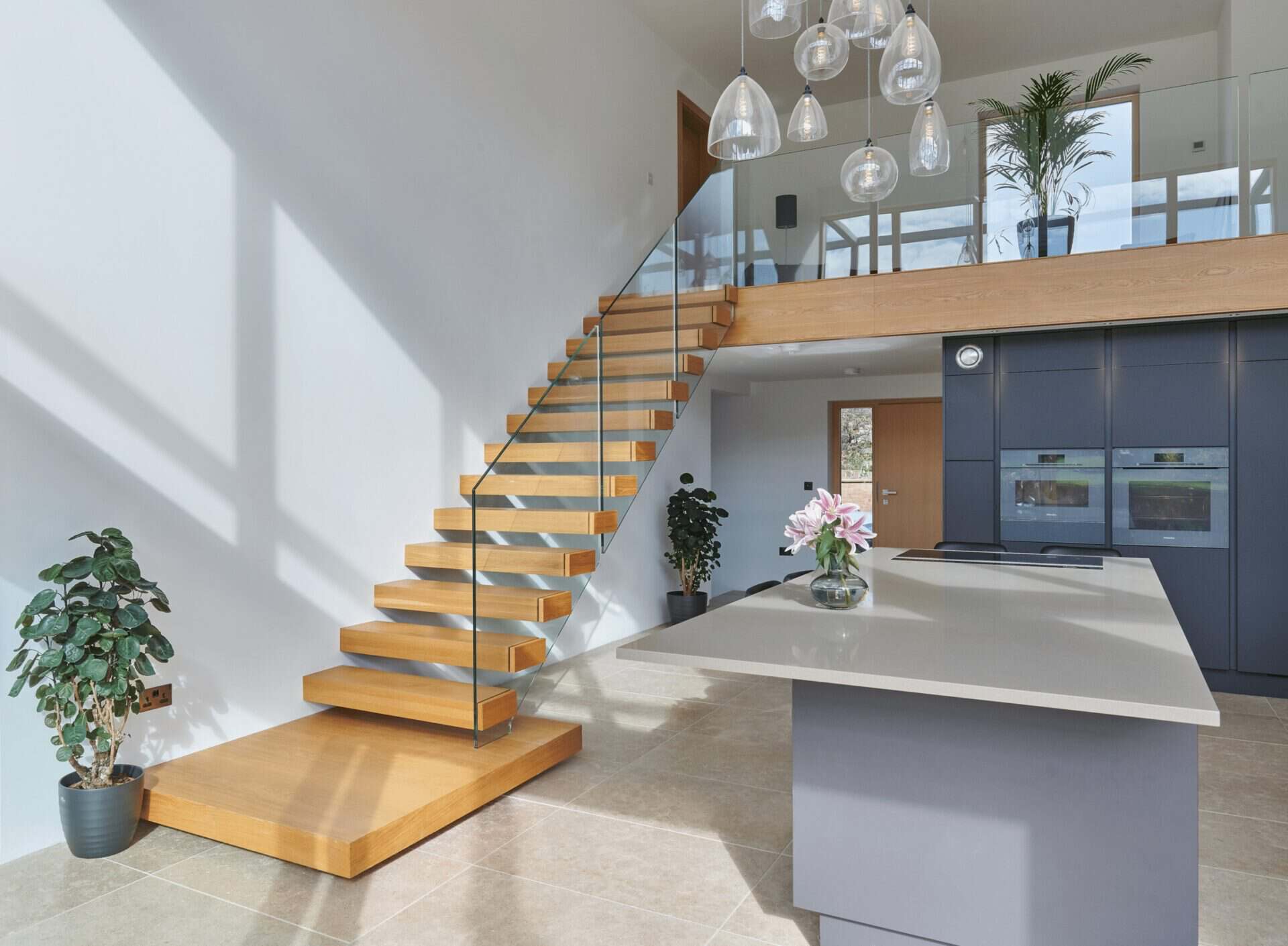

Modern interior with wooden stairs and plants.

Learn how cantilever stairs work with Jarrods Staircases. Our guide covers the building support and safety advice you need for your dream floating staircase.

Discover how cantilever stairs work with Jarrods Staircases. Learn how floating staircases are supported, how they are installed and what makes them a safe and stylish addition to your property.

Whether you’re designing a domestic or commercial space, choosing the right staircase can make a significant difference to the overall look and feel of your property. There are many staircase styles available for renovations and new builds, but one of the most striking contemporary options is the cantilever staircase. Also known as a floating staircase, this innovative design can bring a modern ‘wow factor’ to almost any interior.

But how do cantilever stairs work, and what actually keeps the steps securely in place when there appears to be nothing supporting them?

From explaining the hidden structural supports that make floating stairs possible to exploring the installation process and important safety considerations, this guide answers the questions you might have before investing in one of these impressive architectural features.

What Are Cantilever Stairs?

Before looking at how they work, it’s important to understand what cantilever stairs actually are. Put simply, a cantilever staircase is designed to give the impression that its individual steps are suspended in mid-air, without any visible support underneath.

Unlike traditional staircases, which typically rely on supporting structures running alongside or beneath the steps, a true cantilever staircase has treads that project outwards from a supporting wall or concealed structural framework.

This clever design creates an open, spacious appearance that allows natural light to flow more freely throughout a room. It can be particularly effective in modern homes, where clean lines, minimalist interiors and open-plan living spaces are increasingly popular.

Although cantilever stairs are often chosen for their visual appeal, their design also requires careful structural planning to ensure they are strong, stable and suitable for everyday use.

Are Cantilever Stairs the Same as Floating Stairs?

Yes, although there is a slight difference between the two terms. ‘Floating stairs’ is a general description used for staircases that appear to have little or no visible support, while ‘cantilever stairs’ refers to a particular structural design.

As you might have guessed, the name ‘floating staircase’ comes from the illusion that the individual steps are hovering in mid-air. From certain angles, it can be difficult to see exactly what is holding them in place.

However, not all floating staircases use a cantilever design. Some achieve a similar appearance through concealed central stringers, steel frameworks or other supporting systems.

In the architectural, construction and interior design industries, the terms are often used interchangeably, particularly when describing modern staircases with open risers and minimal visible supports.

Here at Jarrods, we can help you explore the different floating staircase designs available and determine which option will work best with your property, preferred style and existing structure.

How Do Floating Stairs Work?

Cantilever staircases work through a carefully engineered support system that is largely hidden from view. Although the steps appear to hover independently, they are actually secured to a strong supporting structure that transfers their weight and the loads placed upon them into the building.

In a traditional cantilever staircase, each tread is supported at one end, with the remaining section projecting outwards into the room. This creates the distinctive floating appearance without requiring visible supports beneath the outer edge of each step.

The secret lies in the concealed structural framework. Many cantilever staircases use a specially fabricated steel structure that is securely fixed to, or incorporated within, a suitable load-bearing wall or supporting framework.

When someone walks up or down the staircase, the weight placed on each tread creates forces that are transferred through the concealed steel supports into the building’s structure. The supporting system must be designed to resist both the downward load and the bending forces created by the projecting steps.

This is why the strength of the supporting wall or framework is so important. Not every wall can support a cantilever staircase without additional structural work, and the design must be assessed before installation begins.

Despite their seemingly delicate appearance, professionally designed cantilever staircases can be exceptionally strong. With the correct engineering, suitable materials and specialist installation, they provide a practical staircase while maintaining the clean, contemporary appearance that makes them so appealing.

How to Build Cantilever Stairs

Building a cantilever staircase requires careful planning, precision and a thorough understanding of structural engineering principles. Unlike a conventional staircase, where the supporting framework is often clearly visible, a cantilever design relies on concealed components that must be capable of safely supporting the staircase and everyone using it.

For this reason, designing and installing cantilever stairs is a job best left to experienced professionals. However, understanding the different stages can help you appreciate what is involved and what to expect when planning your project.

Here at Jarrods, our experienced team can guide you through the design and installation process, helping you create a staircase that complements your property while meeting the necessary structural and safety requirements.

1) Planning and Design

Before any installation work begins, the first step is to develop a detailed staircase design that considers both the appearance you want to achieve and the structural requirements of your property.

This involves taking accurate measurements, determining the ideal position of the staircase and establishing how the individual treads will be supported. The dimensions of the steps, the overall staircase layout and the available space must all be considered.

One of the most important decisions involves choosing the appropriate supporting structure. Cantilever staircases are commonly supported by concealed steelwork connected to a suitable structural wall or framework. However, the precise arrangement will depend on the construction of your property.

For example, an existing masonry wall may require additional structural reinforcement, while a lightweight stud wall will generally need an independently engineered supporting framework rather than relying on the studs themselves.

At Jarrods, we can help you explore the design possibilities, select suitable materials and coordinate the specialist structural input needed to create a staircase that looks impressive and performs safely.

2) Prepare the Wall

Once the staircase design and structural requirements have been established, the next stage involves preparing the supporting wall or framework.

This is particularly important because the wall must be capable of safely transferring the forces created when people use the staircase into the rest of the building’s structure.

Depending on the property and staircase design, preparation may involve installing structural steelwork, strengthening an existing wall or constructing a suitable supporting framework.

It’s important to remember that simply attaching individual steps to an ordinary wall will not provide the structural support required for a cantilever staircase.

Any necessary alterations should be completed in accordance with the structural design, with the appropriate building control requirements considered before work begins.

3) Install Your Frame or Skeleton

Most cantilever staircases use a specially fabricated steel frame, sometimes referred to as a ‘skeleton’, that provides the hidden support for the individual steps.

This framework is designed around the exact dimensions of the staircase and the structural characteristics of the property. Once manufactured, it is installed and secured to the supporting structure using the fixing methods specified by the structural design.

Getting this stage right is essential. The framework must be accurately positioned, correctly aligned and securely connected to ensure the staircase performs as intended.

When you choose Jarrods, our experienced team can manage the staircase installation process, ensuring the different components are fitted with care and attention to detail.

Once the supporting framework is in place, the staircase can begin to take shape, even though much of the structure will eventually be concealed from view.

4) Install the Treads

With the supporting framework installed, the next stage involves fitting the individual staircase treads.

One of the biggest advantages of cantilever stairs is the flexibility they offer when it comes to materials and finishes. Depending on your preferred appearance and the structural design, treads can incorporate materials such as timber, stone or concrete.

Timber is a particularly popular choice for contemporary floating staircases because it combines a warm, natural appearance with the clean lines of the cantilever design.

The treads are fitted to the engineered supporting system using fixings and connections appropriate to the staircase design. In many cases, decorative tread finishes are installed over concealed steel supports rather than being welded or bolted directly into place.

Each tread must be accurately positioned to maintain consistent spacing, a level walking surface and a comfortable staircase layout.

Once installed, the connections and finished treads should be checked to ensure they meet the design requirements. This is another reason why professional installation is so important, as even small inaccuracies can affect the finished staircase’s appearance and performance.

5) Install Balustrades and Make Final Checks

The final stage involves installing any required balustrades and handrails, completing the decorative finishes and carrying out the necessary safety checks.

Although cantilever staircases are often chosen for their minimalist appearance, safety must always remain a priority. Suitable guarding and handrails are important features, particularly where there is an exposed side or a risk of falling.

At Jarrods, we often recommend glass or wrought iron balustrades for floating staircases. Glass is particularly effective when you want to maintain an open, spacious appearance, while carefully designed metalwork can create an attractive contrast with timber treads.

Whichever option you choose, the balustrades and handrails must be securely installed and designed to meet the applicable Building Regulations.

Once the structural and safety components are complete, attention can turn to the finishing touches. Timber treads may be sanded and treated with suitable protective finishes to enhance their appearance and help protect them against everyday wear.

Finally, the completed staircase should undergo the necessary installation and safety checks before being brought into use.

With professional support from Jarrods, you can enjoy the distinctive appearance of a floating staircase with confidence that the important structural and safety considerations have been properly addressed.

Are Floating Stairs Safe?

Yes, when correctly designed, manufactured and installed, floating staircases can be just as safe as more traditional staircase designs.

Although their open appearance can make them look less substantial than conventional stairs, the concealed supporting structure is specifically engineered to withstand the loads associated with normal use.

The most important factor is ensuring the staircase has been designed for the property in which it will be installed. This includes assessing the supporting structure, selecting suitable materials and ensuring that the finished staircase complies with the relevant Building Regulations.

One of the most common concerns about cantilever staircases involves the gaps between the individual steps, particularly in homes with young children or pets.

In England, Approved Document K sets out guidance relating to staircase design, guarding and protection from falls. For many domestic staircases, the design should prevent a 100mm sphere from passing through the open risers. Similar restrictions apply to relevant gaps in guarding, although the precise requirements depend on the staircase and building type.

It’s also important to consider the height and depth of the steps, the provision of suitable handrails and the strength of any balustrades. A floating staircase should never sacrifice these essential safety features simply to achieve a particular appearance.

Another consideration is the finish applied to the treads. Smooth staircase surfaces can become slippery, particularly when people are walking in socks.

Here at Jarrods, we use an anti-slip clear finish on our cantilever staircase treads to help improve grip while preserving the natural appearance of the material. This provides an additional practical benefit without compromising the clean, contemporary design.

With the right structural support, suitable safety features and professional installation, cantilever stairs can provide a beautiful and dependable staircase for everyday use.

Transform Your Property With a Cantilever Staircase From Jarrods

A cantilever staircase can completely transform the appearance of a property, combining innovative structural design with a modern, minimalist finish. By concealing the supporting framework, these staircases create the impression of floating steps while providing the strength and stability needed for everyday use.

Whether you’re planning a contemporary renovation or designing a staircase for a new-build property, choosing an experienced specialist is essential to achieving the right result.

Here at Jarrods Staircases, we can help you explore the possibilities of floating staircase design, from selecting the right materials and finishes to planning a staircase that complements your property.

For more information about cantilever stairs, or to discuss your ideas with our friendly team, get in touch with Jarrods today.
